Scheda Madre Ga-A320M-S2H (Rev 1.1) Sk Am4
Rated 3.5/5 based on 11 customer reviews
Gigabyte

Scheda Madre Ga-A320M-S2H (Rev 1.1) Sk Am4

Aggiungi la tua recensione
  • Sku: TRE-46796
Secure
Disponibile: Esaurito
€61,13
Pre-ordine
Pre-ordine riuscito. Grazie per averci contattato!
  • Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • GIGABYTE™ UEFI BIOS
  • All new GIGABYTE™ APP Center, simple and easy use



  • Processore
    AM4 Socket:
    1. Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD A320
  • Memoria
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    2. Architettura di memoria a doppio canale
    3. Support for DDR4 3200(O.C.) / 2933(O.C.) / 2667* / 2400 / 2133 MHz memory modules
    4. * Actual support may vary by CPU.
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Supporta le memorie dotate di Profilo XMP
    (Please refer "Memory Support List" for more information.)
  • Grafica integrata
    Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Maximum shared memory of 2 GB
    * Actual support may vary by CPU.
  • Audio
    1. Realtek® ALC887 codec
    2. Audio ad alta definizione
    3. 2/4/5.1/7.1-channel

      * Per configurare l' audio 7.1 devi usare un modulo frontale HD e abilitare il Multi Channel Audio dal pannello di controllo dei tuoi driver
    4. Supporta uscite S/PDIF
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Slot di Espansione
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    2. (Lo Slot PCIEX16 è conforme allo standard PCI Express 3.0.)
    3. 2 x Slot PCI Express x1

      (Gli Slot PCI Express x1 sono conformi allo standard PCI Express 2.0.)
    * Actual support may vary by CPU.
  • Interfaccia di storage
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
    2. * Actual support may vary by CPU.
    3. * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.
    4. 4 x SATA 6Gb/s connectors
    5. Support for RAID 0, RAID 1, and RAID 10
    6. * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
  • USB
    Chipset:
    1. 2 x USB 3.1 Gen 1 ports (available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Connettori Interni I/O
    1. 1 Connettore di Alimentazione ATX a 24-pin
    2. 1 Connettore di Alimentazione ATX ad 8-pin
    3. 4 Connessioni SATA 6Gb/s
    4. 1 Connettore per Ventola della CPU
    5. 1 x Connettore per System Fan
    6. 1 Connettore per Pannello Frontale
    7. 1 Connettore per uscite Audio Frontali
    8. 1 x S/PDIF Out header
    9. 1 x USB 3.1 Gen 1 header
    10. 2 x Connettori USB 2.0/1.1
    11. 1 x speaker header
    12. 1 x chassis intrusion header
    13. 1 x Clear CMOS jumper
    14. 1 x M.2 Socket 3 connector
    15. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
      La funzione TPM è opzionale in base alla regolamentazione dei vari stati

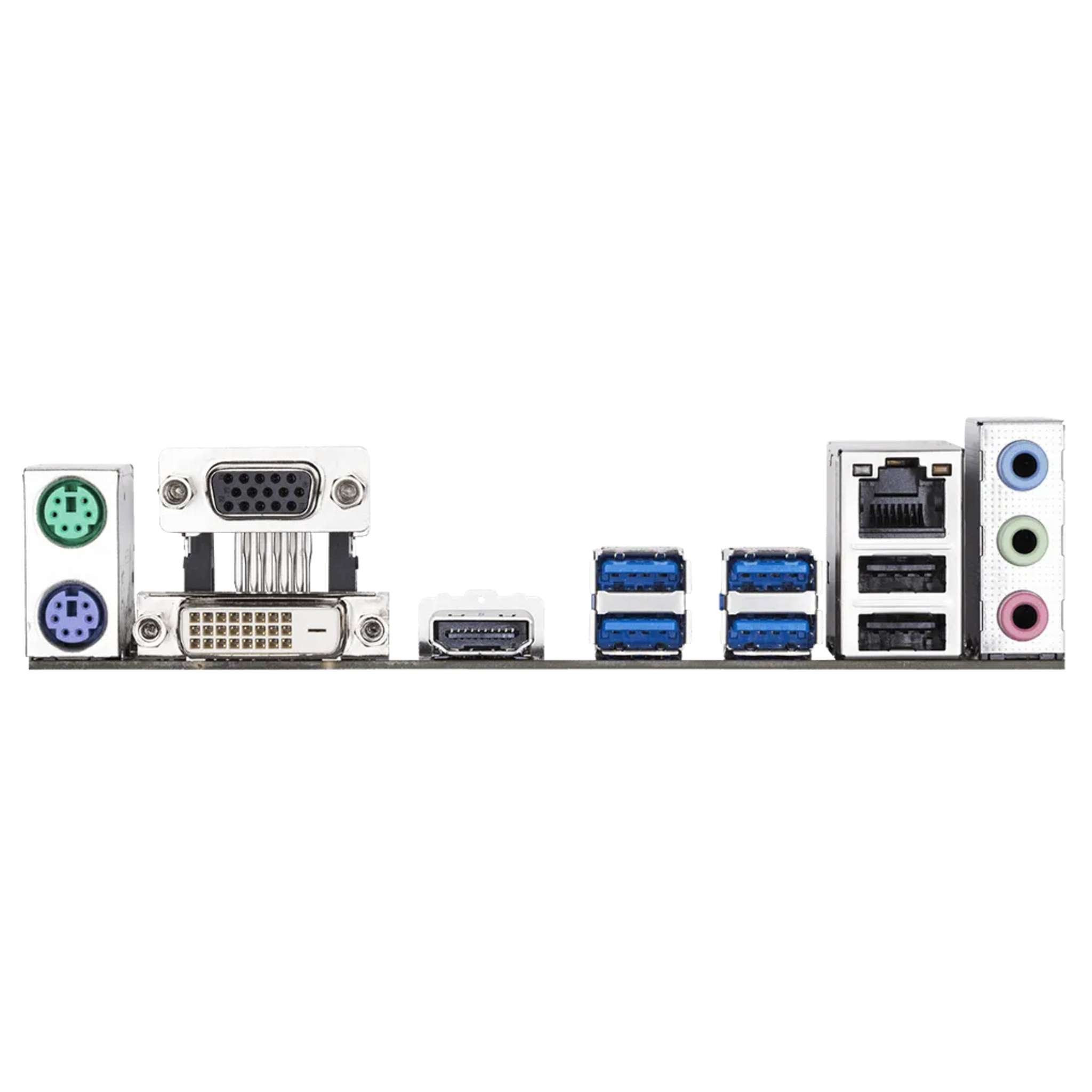

  • Pannello Posteriore I/O
    1. 1 Porta RJ-45
    2. 3 x audio jacks (Line In, Line Out, Mic In)
    3. 1 x Porta D-Sub
    4. 1 x PS/2 mouse port
    5. 1 x PS/2 keyboard port
    6. 2 x USB 2.0/1.1 ports
    7. 4 x USB 3.1 Gen 1 ports
    8. 1 x Porta DVI-D
    9. 1 Porta HDMI
  • I/O Controller
    1. iTE® I/O Controller Chip
  • Monitoraggio H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
    7. *Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Altre Caratteristiche
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      Auto Green
      BIOS Setup
      Support for Cloud Station
      Color Temperature
      EasyTune
      Fast Boot
      Game Boost
      Supporto alla tecnologia ON/OFF Charge
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      System Information Viewer
      USB Blocker
      V-Tuner
      @ BIOS ™
    2. Supporta il Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Sistema Operativo
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
    3. * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
    4. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Caratteristiche Fisiche
    1. Micro ATX Form Factor; 24.4cm x 19.5cm
  • Note
    1. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    2. A causa delle diverse condizioni di supporto per Linux fornito da fornitori di chipset, scaricare il driver Linux dal sito web fornitori di chipset.
